GouMax’s small-form OSA modules with applications to test and measurement equipment are described below. The OSA product is designed and produced using GouMax’s proprietary micro-optics and voltage-controlled tunable filter technology. It measures optical spectrum of optical signals injected into the OSA device over the defined operating wavelength range. From the measured spectrum, critical channel parameters, such as channel power, wavelength, or OSNR, can be analyzed and reported.

GouMax single-band OSA modules support O-, E-, S-, C-, L-, and U-band operation within 1250~1650 nm range.

When used for test and measurement equipment, the embedded OSA module plays a role of OSA engine, integrated into customer's equipment. Customer will control the module and analyze the spectrum data using customer's algorithm.

The OSA module can be used as a standalone device. GouMax provides control software and GUI for data analysis.


Figure 1: Spectrum of FP laser measured by O-band OSA module

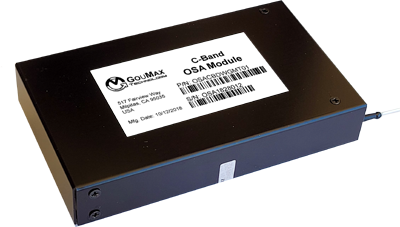

 Figure 2: Single-band OSA module (C-band)

• High spectral resolution
• High wavelength repeatability
• High wavelength accuracy
• No mechanical wear-outs
• Long operation durability



• Portable OSA module for test and measurement equipment
• Optical performance monitoring for DWDM networks
• Feedback control signal for power balancing at DWDM
• Monitoring power for gain equalization
• Monitoring ROADM network
• Research lab and institutions
• Sensing applications


For any single-band OSA module, the Operating wavelength range is 45 nm, specified as Center wavelength ± 22.5 nm.

For details, please request specifications from GouMax Sales.

Note 1: Specs guarantee for input power range only from −40 ~ −10 dBm
Note 2: Specs for power measurements do not include PDL.
