GouMax power meter adaptor LSA-200N is the friendly application of Laser Scan Analyzer to provide syncronized point-to-point trigger signals in support of power spectrum measurements of the third-party multiple channel power meters (such as Keysight N7745A). It also provides wavelength reference and power reference to the third-party power meters. It provides point-to-point triggers (Sync Clock signals) to synchronize among tunable laser, LSA-200N module and third-party power meters. In addition, it can also be used as single channel LSA-200A. LSA-200N provides wavelength measurement for sweeping laser. Specifically, LSA-200N module can provide the following functions:

  • It supports the third-party multile channel power meters
  • It provides point-to-point triggers to the third-party multile channel power meters
  • It can be used as LSA-200A for single-channel testing.

LSA-200N

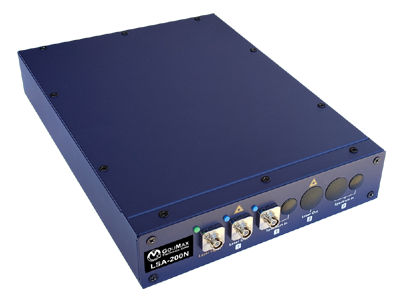

Figure 1: Single-Channel LSA-200N Module

» Key Features

  • Provide syncrinized point-to-point trigger signals
  • High-speed scan 1×1 test channel (One channel)
  • Built-in wavelength reference
  • Can provide wavelength reference to LSA-200B modules
  • Real-time power reference
  • 70 dB dynamic range detection

» Key Applications

  • Passive fiber-optic component characterization
  • Optical parameter measurement
  • Production line automation
  • Optical filter inspection

» Typical Specifications


When used as LSA-200A, Full-band LSA-200N modules support wavelength range from 1280 nm to 1650 nm. R50 model is used for both DWDM and CWDM applications. R200 model is suitable for CWDM measurements.

For details, please request specifications from GouMax Sales.

Item Unit R50 R200
Wavelength Range nm 1250~1680 1250~1680
Wavelength Accuracy pm ± 8 ± 50
Wavelength Repeatability pm 4 10
Measurement Dynamic Range dB 60 60
Power Uncertainty dB ± 0.05 ± 0.05
Power Resolution dB 0.005 0.005
Power Repeatability dB ± 0.04 ± 0.04
Noise Floor dBm -65 -65
